How Multispectral Imaging Reveals Heat-Producing Tissues in Magnolia Flowers
New research shows how the Videometer technology helps uncover hidden plant physiology
Understanding what happens inside plant tissues has always been one of the biggest challenges in plant science. While traditional imaging can show surface features, and thermal cameras can detect temperature, identifying where biochemical activity actually occurs inside complex organs usually requires destructive lab methods.
The new scientific study Integrated Multiscale Imaging and Noninvasive Micro?Sensing Decipher Spatiotemporal Calcium Dynamics in Thermogenic Tissue of Magnolia Flower (Wang et al., 2026) published in Plant, Cell & Environment demonstrates how multispectral imaging (MSI) changes this paradigm.
By combining infrared thermography, elemental mapping, and Videometer spectral imaging technologies, researchers were able to precisely locate heat-producing tissue inside Magnolia flowers, non-destructively, and link it to calcium signaling and mitochondrial metabolism.
The challenge: finding thermogenic tissue inside complex flowers
Some plants, including Magnolia denudata, can actively generate heat during flowering, a phenomenon known as floral thermogenesis. This heat supports pollination and reproductive success, especially in cold environments.
Until now, scientists knew which organs warmed up, but not which specific internal tissues were responsible.
Heat spreads rapidly through plant structures, making it difficult to localize its true source using thermal cameras alone. This is where spectral imaging takes a relevant role.
Videometer multispectral imaging: seeing beyond temperature
In this study, researchers used the VideometerLab to scan longitudinal sections of Magnolia gynoecia at two stages:
- Before heating (non-thermogenic)
- During peak heating (thermogenic)
Each sample was captured across the 19 spectral bands in the instrument, spanning UV, visible, and near-infrared. This produced a rich spectral fingerprint for every pixel, beyond what RGB or thermal imaging can provide.

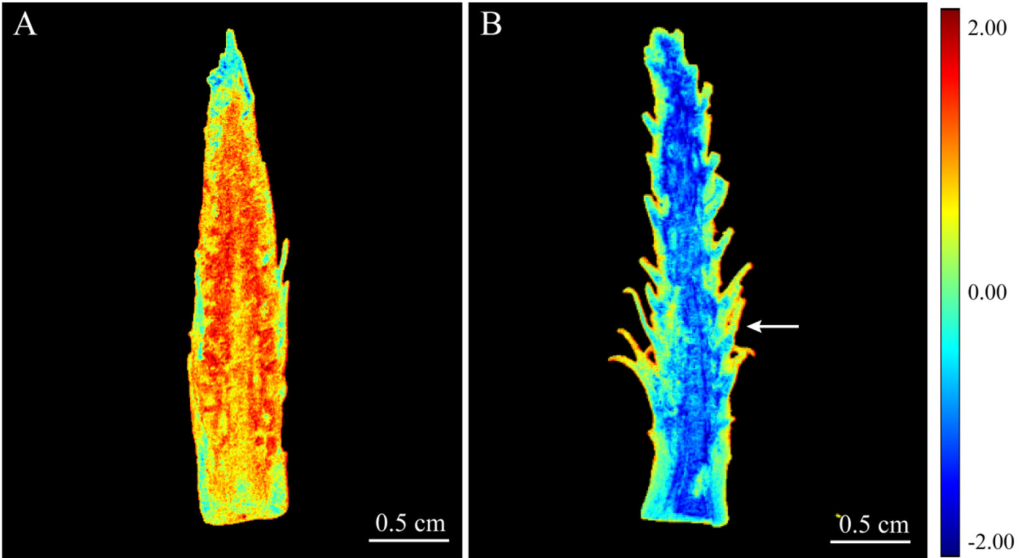

Using Videometer’s statistical and image processing tools, such as transformation nCDA and PCA the team could:
- Clearly separate thermogenic and non-thermogenic tissues
- Detect biochemical differences invisible to the naked eye
- Pinpoint the exact heat-producing region inside the organ
Multispectral imaging revealed that only the lateral tissue of the gynoecium, not the entire organ, is responsible for heat generation.
Near-infrared spectroscopy exposed metabolic changes
One particularly important finding was that thermogenic tissue showed significantly higher reflectance in the near-infrared (780–970 nm) range.
Near-infrared wavelengths are well known to correlate with biochemical properties such as lipid content and tissue structure. The increased NIR reflectance indicated that the heat-producing tissue undergoes distinct metabolic and compositional changes during thermogenesis.
In practical terms, this means that spectral imaging doesn’t just show where something happens, but it can also reveal how tissue chemistry changes over time.
Spectral Imaging as a roadmap for deeper biological insight
After identifying the thermogenic region with spectral imaging, researchers used additional techniques to investigate why this tissue behaves differently.
They discovered that:
- Calcium accumulates specifically in the lateral tissue
- Calcium influx increases dramatically during heating
- Mitochondrial respiration rises in the same region
Together, these results show that calcium signaling and mitochondrial metabolism drive floral heat production.
The VideometerLab provided the initial explorative analysis, guiding all downstream research. A perfect example of spectral imaging acting as a fast, non-destructive screening tool in advanced plant research.
Why this matters for plant science, phenotyping, and agriculture
This research demonstrates how the Videometer technologies can:
- Non-destructively distinguish functional tissue types
- Detect subtle biochemical changes
- Guide precision sampling
- Accelerate discovery in complex plant systems
Applications extend far beyond thermogenesis, including:
- Plant phenotyping
- Stress detection
- Tissue differentiation
- Seed and organ quality assessment
- Crop research and breeding programs
By combining high spatial resolution with rich spectral data, Videometer systems enable researchers and industry professionals to move from visual inspection to quantitative, chemistry-aware imaging.
From flowers to future crops
Spectral imaging is becoming a core technology for understanding plant physiology at scale.
By enabling rapid, reproducible, and non-invasive analysis, the VideometerLab empowers scientists and agricultural innovators to see what was previously hidden.
Get in touch with our team or explore our solutions to discover how spectral imaging can unlock new insights in your plants, seeds, and crops.
Contact us for more information on spectral imaging for plant science.
